Different topocrom® structures
A hemispherical and stochastic surface is characteristic for the Topocrom® structure.
Topographies from open to closed can be generated. Roughness values from Ra 0,5 – 12µm are possible as well as peak counts of RPc 60 – 200/cm.

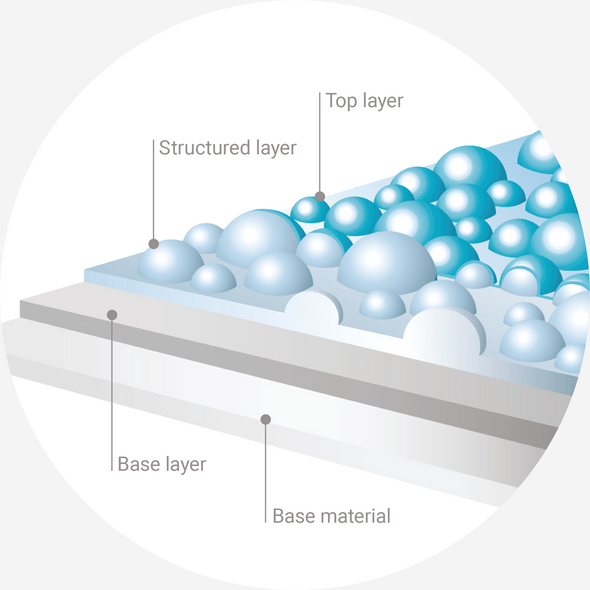

Surface Topography and Multi-Layer System
topocrom® - Surface
Surface Topography
and Multi-Layer System
Surface roughness and structure adjustable in a wide range
Surface Topography and Multi-Layer System
topocrom® - Surface
Production of TOPOCROM® layers
- Easy, cost-efficient, variable
Topocrom® coatings consist of pure metallic chromium, are very wear resistant and achieve an extremely long service life in the skin-passing process.
- Surface Topography and Multi-Layer System
- Surface Topography and Multi-Layer System
Structure

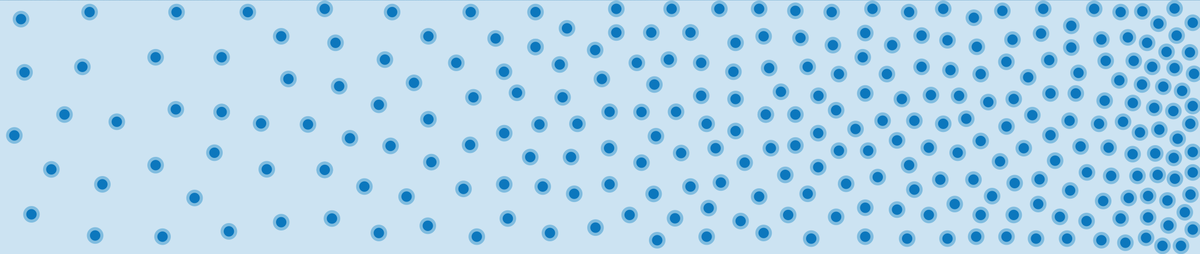

Open and Closed Structure
for every need of the economy
- Open
- Closed
Hardness
Convex Structure
The structure is build up on top of the ground roll body surface by the special Topocrom® plating process.
